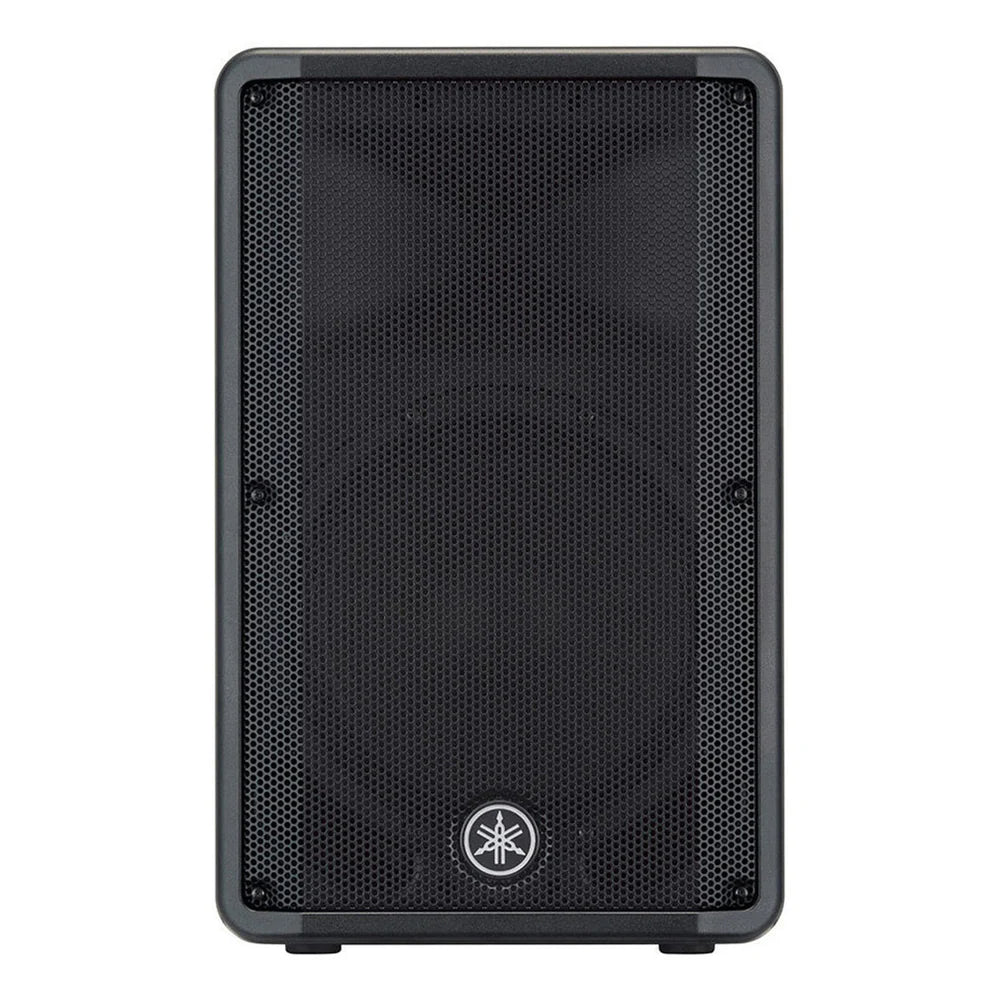

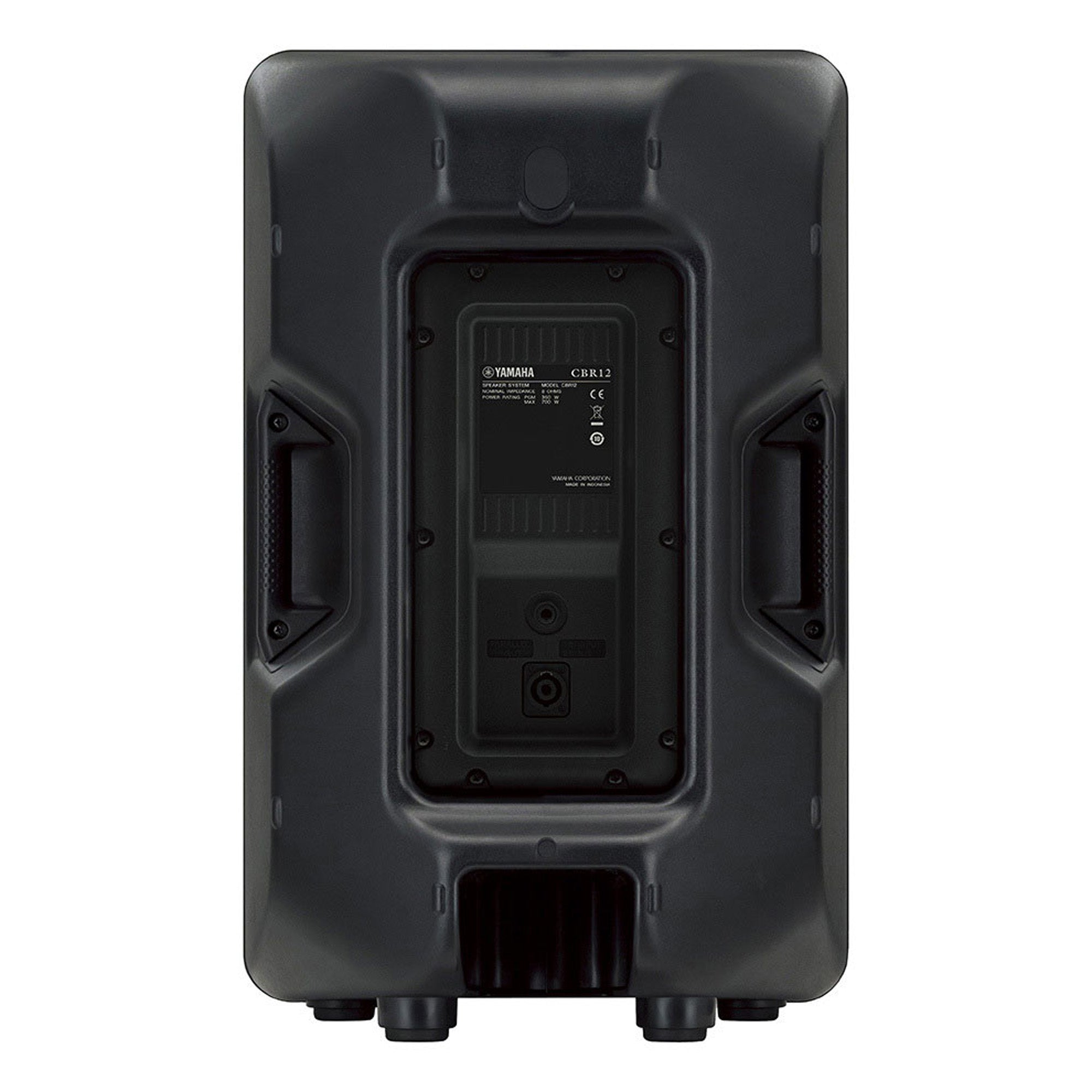

Yamaha CBR12 700w 12" Passive Speaker

The CBR12 represents a perfect balance of size and performance. Ideal for front-of-house, floor monitoring or even rigged applications, the CBR12 is an ideal choice for a wide range of applications.

Specifications

• Speaker type: 2-Way Speaker, Bass-Reflex Type
• Frequency range (-10dB): 48 Hz - 20 KHz
• Nominal coverage: H 90°, V 60°
• Components: LF 12" Cone, 2" Voice Coil (Ferrite Magnet), HF 1.4" Voice Coil, Compression Driver (Ferrite Magnet)
• Crossover: 2.1 KHz
• Power rating: NOISE 175W. PGM 350W. PEAK 700W
• Nominal impedance: 8Ω
• SPL Sensitivity: (1W; 1m on axis) 96dB SPL, Peak (Calculated) 125 DB SPL
• I/O connectors: 1/4" Phone X 1, SpeakON NL4MP X 1
• Cabinet material: Plastic
• Finish: Black
• Handle: Side X 2
• Flying and mounting hardware: Bottom X 2, Rear X 1 (Fit For M8 X 15mm Eyebolts)
• Pole socket: Φ35 mm Bottom X 1
• Dimensions: W 376mm (14.8"), H 601mm (23.7"), D 348mm (13.7")
• Net weight: 13.9 Kg (30.6 Lbs)
